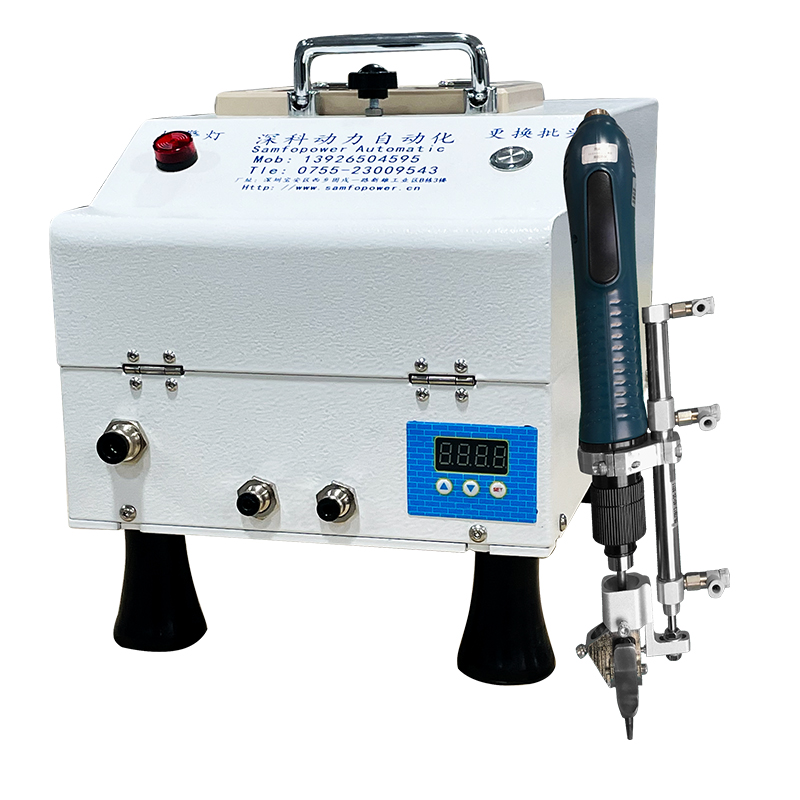

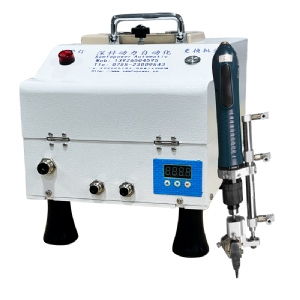

SK-801B Handheld automatic lock screw machine (half push-pull)

The biggest feature is: both non-magnetic and magnetic screws are applicable.

▲(1) Features of the equipment

1. The use of turbine feeding completely subverts the working principle of the traditional hand-held screw-locking machine, abandoning the vibrating plate and the pusher, making the automatic screw-locking machine lighter, safer, more stable, faster, with low noise and low energy consumption. The screws are sorted on the vibrating guide rail for gong wire screening, and conveyed to the screw distributor to distribute the screws and send the screws to the lock mouth by tracheal pressure, and the screws are locked into the product by an electric or pneumatic screwdriver.

2. The electric batch sleeve is small, which does not hinder the worker's sight of operation.

3. The weight of the electric batch sleeve is quite light, and the workers will not feel heavy when operating.

4. Low noise.

5. No vibration plate is used, so the screw does not vibrate and will not fade.

6. Intelligent alarm function for material shortage.

▲(2) Advantages of equipment

1. Convenience, one hand-held product to be locked can be freed up when screwing, and a positioning jig can be omitted if it is a small product.

2. Fast, eliminating the need to move hands, grab screws, move, and align the screws with the screwdriver. There is no waiting time at all, just align the screw holes and lock the screws.

3. Neat, since the action of taking screws by hand is omitted, the working area will not lose screws and be cleaner.

4. Stable, using original imported components, finishing, stable performance and more durable.

5. Simple, no professional training is required, novices can work proficiently, and long-term work will not be tired.

▲(3) Applicable products

Widely used in various industries, such as mobile phones, hard drives, keyboards, toys, LCD/LED modules, communication equipment, electrical appliances, toys, auto parts and other electronic processing factory assembly.

▲(4) Applicable gong wire

1. Applicable screw range: M2-M6.

2. The screw head patterns used are: one-word, cross, triangle, plum blossom, hexagon socket, H head, etc.

3. The surface treatment methods of the screws used are: electro-nickel, black pot, color zinc plating, white zinc plating, copper plating, etc.

4. The screw materials used are: iron, copper, stainless steel, etc.

5. The materials of locking screw products are: plastic, iron, aluminum, etc.

▲(5) Technical parameters
