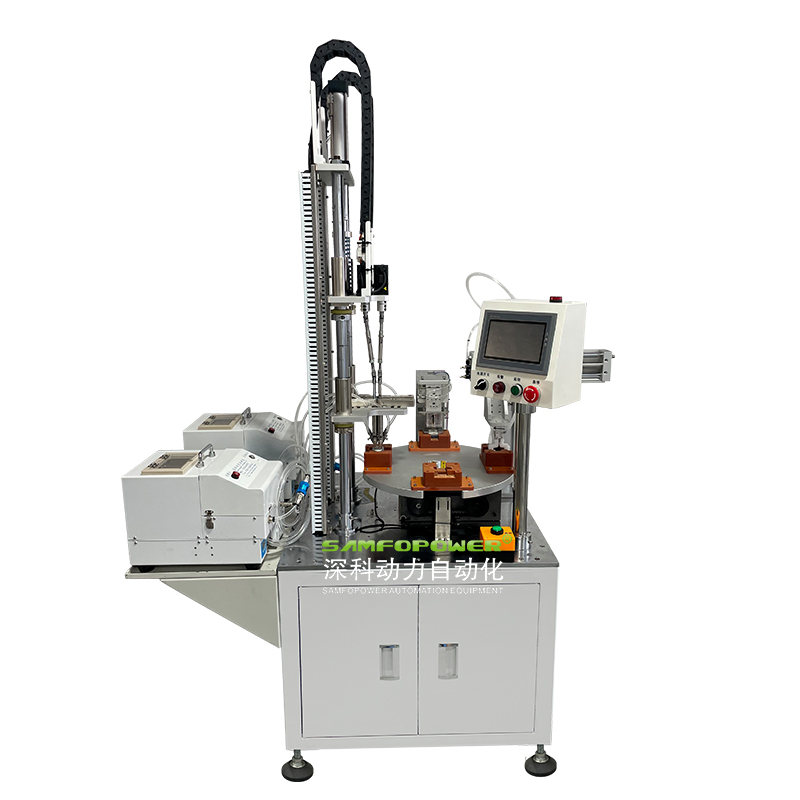

SK-803 Turntable automatic locking screw machine

▲(1) Features of the equipment

1. Structural composition: It is mainly composed of automatic screw conveying system, screw locking mechanism, electrical control system, etc.

2. The axis position and height can be adjusted freely without the limitation of small hole spacing

3. The time to lock and pay a product is about 3S. (The length of the screw is slightly different).

4. The locking screws are: the provided model automatic screws, allowing the dimensional tolerance of incoming materials to be ±0.2mm.

5. Lock payment products: according to the product samples provided by customers.

6. Fixtures: According to product design, precise positioning and simple and convenient replacement are required.

7. The product will not be damaged during the use of the equipment.

8. Reliability and stability: can work continuously and stably every day, with low failure rate, suitable for large-scale single product production;

▲(2) Advantages of equipment

1. Locking multiple screws at the same time can replace multiple workers; for example, an 8-axis automatic screw-locking machine can lock 8 screws at the same time. The number of axes can be customized according to customer requirements.

2. The axis position and height can be adjusted freely without the limitation of small hole spacing

3. Manually only pick and place the product, the machine automatically locks the screw and can judge whether the screw is

After locking, the machine will alarm for products with poor locking, which is convenient for distinguishing defective products.

4. The electric batcher transmits the torque lock screw through the universal drive shaft, and the screw hole position adjustment is convenient.

Changing product varieties is easy.

5. Good versatility. A certain electric batch can be removed without locking screws.

▲(3) Applicable products

Widely used in toys, plastics, filters, heat sinks, LED screens, lamps and other industries

轉盤式+可加機械手自動上下料；多軸式，可以鎖付多種規格型號螺絲；一次鎖付多顆螺絲，可代替多名工人；轉盤多工位，可完成組裝、檢測、鎖螺絲、卸料等多工序。機械手 多軸同時鎖付 轉盤式Turntable type + can add manipulator automatic up and down material;Multi-axis type, can lock and pay a variety of specifications of model screws;Lock to pay multiple screws at a time, can replace multiple workers;Turntable multistation, can complete assembly, detection, locking screws, unloading and other processes.

伺服電批N個、供料機N個、機械手N個、治具N個；多軸同時鎖付，可根據客戶要求定制軸數；配機械手，自己夾取打好的產品上下料；智能伺服電批，精準扭力；蜂鳴報警系統，滑牙、浮牙、漏鎖報警；

Servo electric batch N, N feeder, N manipulator, N cure device;Multi-axis simultaneous lock payment, which can be customized according to customer requirements;With a manipulator, their own clip to play a good products up and down the material;Intelligent servo-electric batch, accurate torsion;Sliding teeth bee alarm system, sliding teeth, floating teeth, missing lock alarm;

人工上產品，啟動依次運行；轉盤旋轉式工位，可實現產品檢測、鎖螺絲、下料等等；多軸同時鎖付，一次鎖好所有螺絲；多工位多工序同步，循環圓周步進流水作業。

Manual on the products, start and run in turn;Turntable rotating station, can realize product detection,lock screw, material and so on;Multi-axis lock and pay at the same time, and lock all thescrews at a time;Multi-station multi-process synchronization, circular step water operation.

同時鎖多顆螺絲，可代替多名工人；多工位，可實現鎖螺絲、檢測、組裝等工序；通用性強，可同時鎖付多種螺絲；配置取料機械手，可接泊自動化流水線。

Lock multiple screws at the same time, which can replace multiple workers;Multiplex station, can realize the lock screws, detection, assembly and other processes;Strong versatility, you can lock and pay a variety of screws at the same time;Equipped with feeding manipulator, can park the automatic assembly line.
