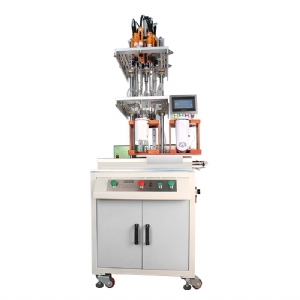

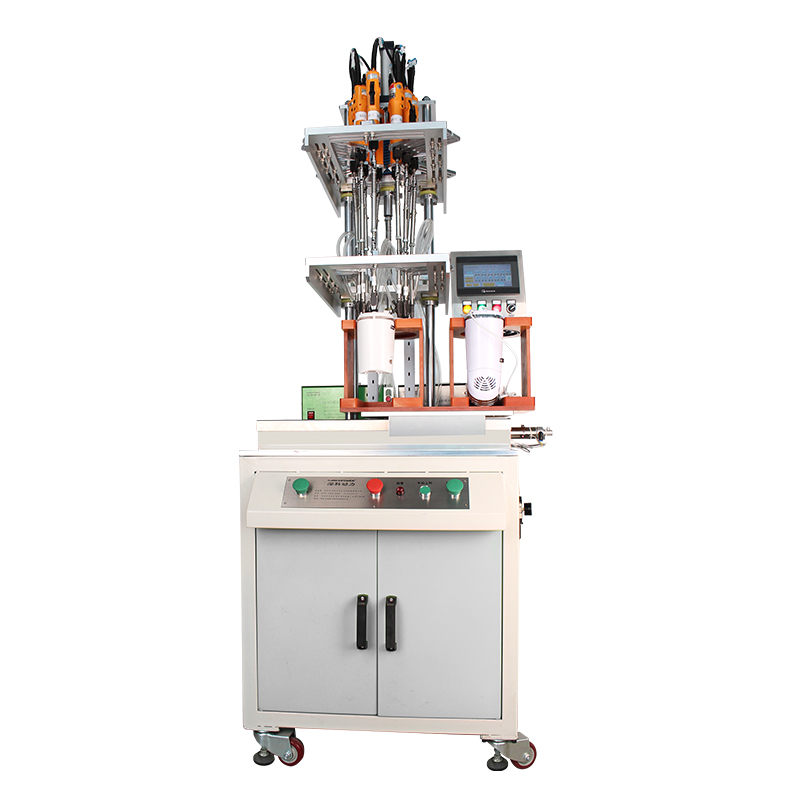

SK-802 Multi-axis automatic locking screw machine

優勢 Advantage

多顆螺絲同時鎖緊，效率加倍；自動識別不良鎖付，提高品質；可同時鎖付多種規格螺絲；Multiple screws are locked at the same time, which doubles the efficiency;Automatic identification of bad lock payment, improve quality;Can lock a specifications of screws at the same time;

▲(1) Features of the equipment

1. Structural composition: It is mainly composed of automatic screw conveying system, screw locking mechanism, electrical control system, etc.

2. Product replacement: The fixture can be replaced directly, and the axis position is adjustable.

3. The time to lock and pay a product is about 3S. (The length of the screw is slightly different).

4. The locking screws are: the provided model automatic screws, allowing the dimensional tolerance of incoming materials to be ±0.2mm.

5. Lock payment products: according to the product samples provided by customers.

6. Fixtures: According to product design, precise positioning and simple and convenient replacement are required.

7. The product will not be damaged during the use of the equipment.

8. Reliability and stability: can work continuously and stably every day, with low failure rate, suitable for large-scale single product production;

▲(2) Advantages of equipment

1. Locking multiple screws at the same time can replace multiple workers; for example, an 8-axis automatic screw-locking machine can lock 8 screws at the same time. The number of axes can be customized according to customer requirements.

2. The machine is the most cost-effective.

3. Manually only pick and place the product, the machine automatically locks the screw and can judge whether the screw is

After locking, the machine will alarm for products with poor locking, which is convenient for distinguishing defective products.

4. The electric batcher transmits the torque lock screw through the universal drive shaft, and the screw hole position adjustment is convenient.

Changing product varieties is easy.

5. Good versatility. A certain electric batch can be removed without locking screws.

6. The machine is simple and practical, and employees can quickly master the operation and debugging;

▲(3) Applicable products

Widely used in toys, plastics, filters, heat sinks, LED screens, lamps and other industries

▲ Introduction

Brushless electric screwdriver:N，Automatic feedr:N;According to customer requirements, customized electric batch, configuration;Multi-axis simultaneous lock payment, which can be customized according to customer requirements;Beming alarm system, sliding teeth, floating teeth, missing lock alarm；

Work process

Manually place the product and fix it on the fixture;One-button start, multi-axis lock payment at the same time; Lock all the screws at once；Manual feeding, cycle operation。

Features

Lock multiple screws at the same time, which can replace multiple workers； Multiplex station, can realize the lock screws, detection, assembly and other processes；Strong versatility, can simultaneously lock and pay a variety of screws; Pooring automatic pipeline.
