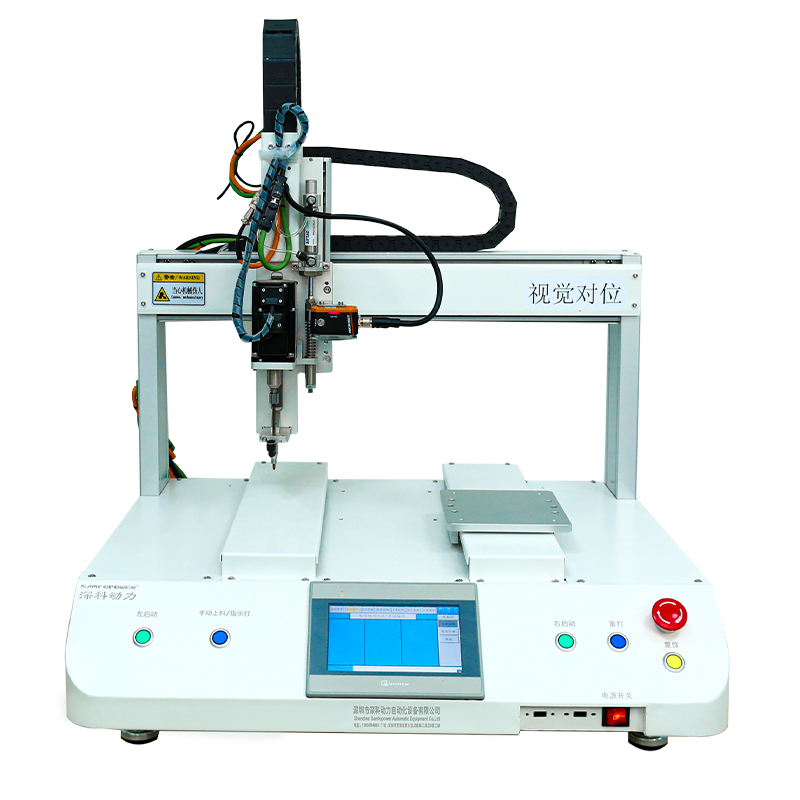

SK-805C Visual alignment automatic locking screw machine

▲(1) Features of the equipment

The biggest feature of the air-breathing automatic locking screw machine is that it is suitable for a wider range of screws. It adopts the combination of the coordinate machine and the screw arranging machine. Through the coordinate machine, the screw can be retrieved back and forth from the screw arranging machine. The Z-axis can install up to 2 electric batches at the same time to lock and pay, as long as It is enough to modify the coordinates of the locking point, and then perform the screw locking process. Although the efficiency is lower than that of the air blowing type, the adsorption type has loose requirements on the size of the screws, especially some special screws that cannot realize the air blowing type. Stable operation and a wider range of applicable screws. In today's era of rapid product replacement, the investment in fixed assets can be greatly saved.

▲(2) Advantages of equipment

1. Strong versatility. Small in size, it can cooperate with production line operations, and it is convenient to replace products.

2. The number of Z-axis electric batches can be customized according to customer requirements, 2 electric batches work at the same time, which can replace multiple workers;

3. The Y axis can be made into a double station (ie double Y axis) according to the needs, and the operator can alternate loading and unloading.

4. Reduce the labor intensity of workers. The traditional manual placement of screws and alignment of screw heads takes a lot of work time and effort.

5. High degree of automation. The operation is simple, and the employees can quickly master the operation and debugging. One worker can manage several machines at the same time. Save labor.

6. Accurate torque. It is easy to adjust and ensures the locking quality.

7. Wider range of applicable screws.

▲(3) Applicable products

Widely used in toys, plastics, filters, heat sinks, LED screens, lamps, 3C digital, hardware appliances and other industries

▲(四)參數(shù) Specification
