Location:Home > 產品中心 > SCARA horizontal articulated robot

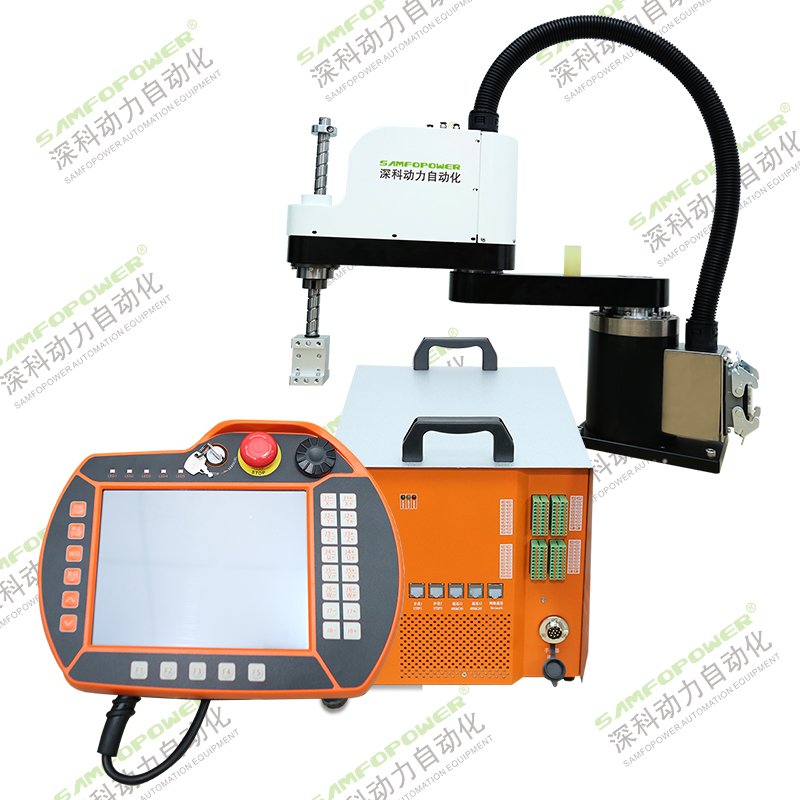

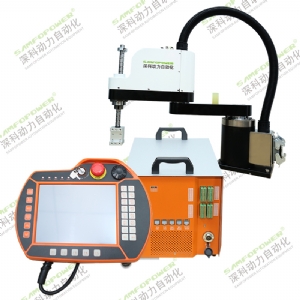

SCARA horizontal articulated robot

產品簡介：示教編程器1個；工控設備1臺；四軸工作模組1臺；支持二次開發應用；可根據需求切換應用掛件，具體要按實際掛件需求定制；可廣泛應用于打螺絲、點膠、產品組裝等； Teach the programmer：1 , Industrial control equipment：1, Four-axis working module：1. Support for secondary development and applications ； Can switch the application pendant according to the needs, the specific needs to be customized according to the actual pendant needs; Can be widely used in screw, glue, product assembly, etc。

咨詢熱線：

產品詳情

SCARA horizontal articulated robot

SCARA水平多關節機器人

Introduction end Features：

Teach the programmer：1 , Industrial control equipment：1, Four-axis working module：1.Support for secondary development and applications ；Can switch the application pendant according to the needs, the specific needs to be customized according to the actual pendant needs;Can be widely used in screw, glue, product assembly, etc

Customize the programming according to the customer request;Can fully automatic lock screws, glue, product assembly, unloading and other processes;Automate pipeline operations;

Quad-axis (X, Y, Z, and C) 4 degrees of freedom:Lightweight structure, quick response speed;Suitable for plane positioning and vertical direction assembly operations;Application for locking screws, glue, packaging, fixing, coating, etc:

技術參數

型號	SK-S400/500/600
臂展長度	400mm/500mm/600mm
臂長	L12 150/250/350 ； L23/250/250/250
關節參數	X:-125°~125°
	Y：-140°~140°
	Z：-145mm~5mm
	U:-360°~360°
負 載	額定：3kg Rated: 3kg
負 載	最大：5kg
重復定位精準度	XY：0.02mm
	Z:0.02mm
	U:0.01°
IO 點	32DI/31DI
功率	AC 220V/50HZ
電源	1KW
工作環境	溫度：-20℃~50℃
工作環境	濕度：10~60%
整機質量	約20kg
電機	伺服電機
